Rock Grapple, Fine Grade Skeleton Rock Grapple Rake | 82" - $2,795 (Chester, GREAT FALLS)
4455 S Tiber RD
condition:
new
make / manufacturer:
titan
QR Code Link to This Post
Skeleton Rock bucket 72" (no grapple) with replaceable Teeth $1,639
These are Heavy Duty Built, wont bend when loading that big Rock!!!
-**These work great also for picking rock out of pit run gravel for you road or pad!!!!!
--Fine Grade Skeleton Rock Grapple Rake 82" Wide $2,795
Jaw Opening 35.5-in.
Overall Width 83-in.
Overall Depth 51.5-in.
Inside Width 82-in.
Inside Depth 38-in.
Top Teeth Thickness 0.375-in.
Spacing Between Tines3-in.
Bottom Tine Thickness0.5-in.
Side Cutting Edge Thickness0.5-in.
1200 lbs
Universal Skid Steer Quick Tach Mounting System
Rock dam and notch holds the rocks securely
Fine grade open-tined bottom spaced 3" apart
Reinforced side cutters and cutting edge
Frame is built with 3" x 3" steel tubing
2.5" bore x 8" stroke hydraulic cylinders
Replaceable teeth
Hoses and flat-faced couplers included
--Skeleton Rock Bucket Grapple Rake with Teeth(no Grapple) | 72" $1,639
Overall Height 20-in.
Overall Width 74.5-in.
Overall Depth 49.5-in.
Inside Height 14-in.
Inside Width 72.5-in.
Inside Depth 38.5-in.
Spacing Between Tines4-in.
Tine Thickness 0.5-in.
Side Wall Thickness 0.75-in.
Cutting Edge Thickness 0.75-in.
670 lbs
Universal Skid Steer Quick Tach Mounting System
Rock dam and notch holds the rocks securely
Reinforced side cutters and cutting edge
Open tine bottom for sifting debris
Frame built with 3" x 3" steel tubing
Integrated step
Replaceable bolt-on teeth
***We sell all Industrias America / West Valley equipment only Montana Dealer!!! Plus Iron Craft and Westfield eq and Romafa air seeder parts!!!

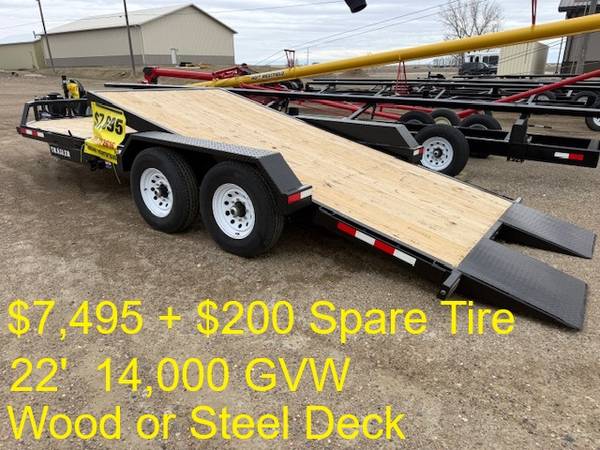

Fuel Trailers, Tilt Deck Trailers, Header Trailers, Dirt Blades, Box Blades, Snow Pushers, 3 pt Mowers, Batwing Mowers, Augers, Conveyors, Portable Corrals, 3 pt Blades, Brush Mowers, Rock Buckets, Rock Bucket grapples and many more items!!!!!
